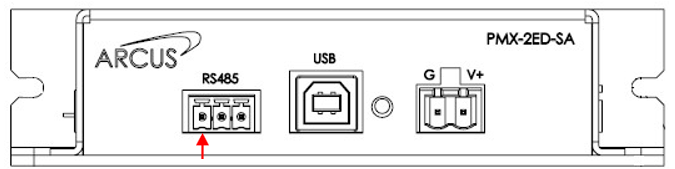

3-Pin RS-485 Connector (3.81mm)
3-Pin RS-485 Connector (3.81mm)
|
Pin # |
In/Out |
Name |
Description |
|
1 |
I/O |
485+ |
RS-485 plus signal |
|
2 |
I/O |
485- |
RS-485 minus signal |
|
3 |
I |
G |
Ground |
Mating Connector Description: 3 pin 0.15” (3.81mm) connector
Mating Connector Manufacturer: On-Shore
Mating Connector Manufacturer Part: 1EDZ1550/3
1Other 3.81mm compatible connectors can be used.
