This page is currently under development.  Check this page for updates and the most current information.

When migrating from the PMX-4EX-SA-TBS, it is recommended to consider the CMD-4EX-SA-TBS.

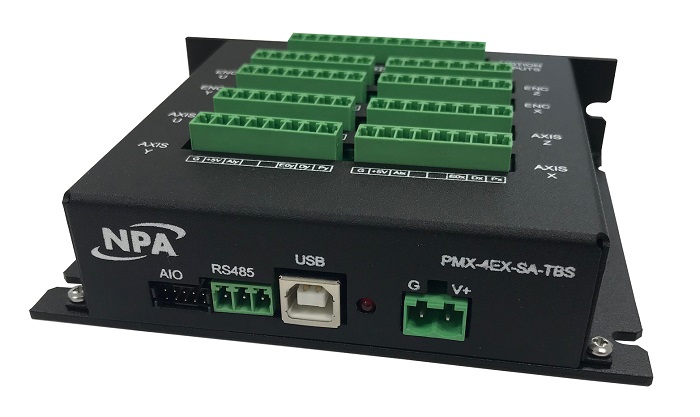

PMX-4EX-SA-TBS

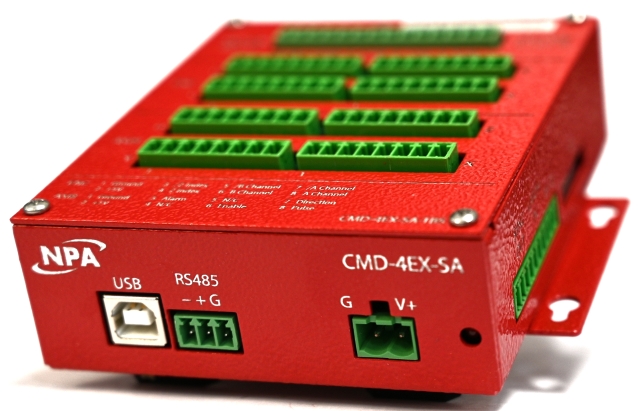

CMD-4EX-SA-TBS

The CMD-4EX-SA is available with multiple top board configurations:

• TBB / TBS: Controller-only configurations (no integrated motor drivers)

• TBD: Controller with integrated stepper motor drivers



The CMD-4EX-SA is designed to be partially backward compatible with the PMX-4EX-SA. The CMD-4EX-SA keeps existing simplicity, connectors, pin outs, and software compatibility of the PMX-4EX-SA, with additional robustness and advanced features that users have requested. Due to physical size limitations the number of quick access inputs/outputs has been reduced to 4 high speed inputs and 4 high speed outputs. An additional 26 general purpose configurable inputs/outputs are available.


This page will display an example of a migration path from a PMX-4EX-SA-TBS to the CMD-4EX-SA-TBS.




For details of the differences between the CMD-4EX-SA and the PMX-4EX-SA review:

Hardware differences

Software differences


The full CMD-4EX-SA hardware manual can be found here. See the Commander Manual and the NPA Command Reference for command structure, operational details, firmware updates, software tools, and additional support resources.

A copy of the PMX-4EX-SA manual can be downloaded here.

Download this article as a PDF or CHM (native windows help file).
