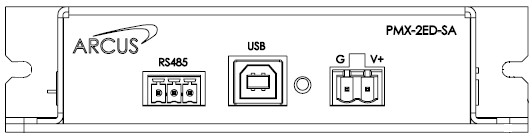

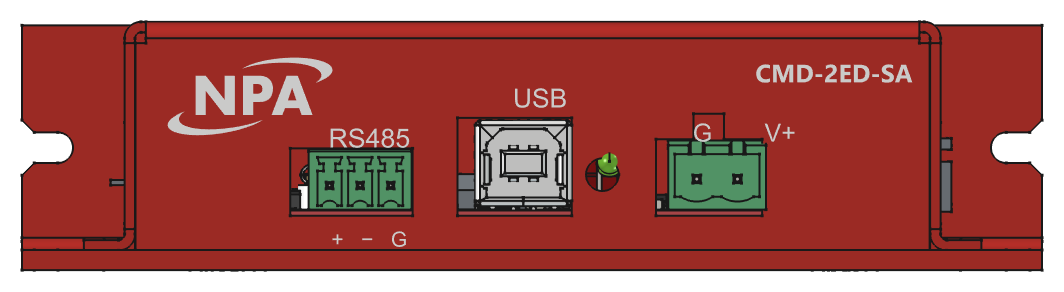

Pin description:

Pin #

In/Out

Name

Description

I/F circuit

1

I

GND

Ground


LPI

2

I

V+

Power Input +12 to +48 VDC

Mating Connector

Description:                2 pin 0.2” (5.08mm) connector

Manufacturer:                 On-Shore

Manufacturer Part:        EDZ950/2

NPA part number:        430-402-10

Note: Other 5.08mm compatible connectors can also be used.


Supplies and grounds

Parameter

Min

Max

Units

Main Power Input



+12

+24

V

-

300

mA


Both control power and driver power must be powered for the CMD-2ED to operate. They may be fed from the same power supply; doing so joins the logic and motor grounds outside the unit.
