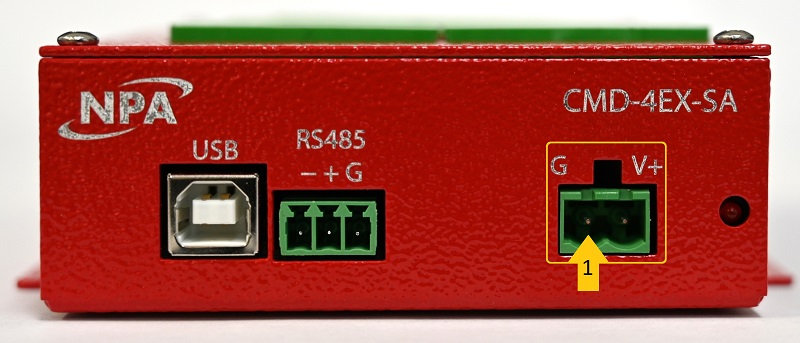

Picture showing location of power input.

Pin description:

Pin #

In/Out

Name

Description

I/F circuit

1

I

GND

Ground




2

I

V+

Power Input +12 to +48 VDC

Mating Connector

Description:                2 pin 0.2” (5.08mm) connector

Manufacturer:                 On-Shore

Manufacturer Part:        EDZ950/2

NPA part number:        430-402-10

Note: Other 5.08mm compatible connectors can also be used.
