Standalone Controller Series Hardware Manual

4.3 JBD-4EX-I26

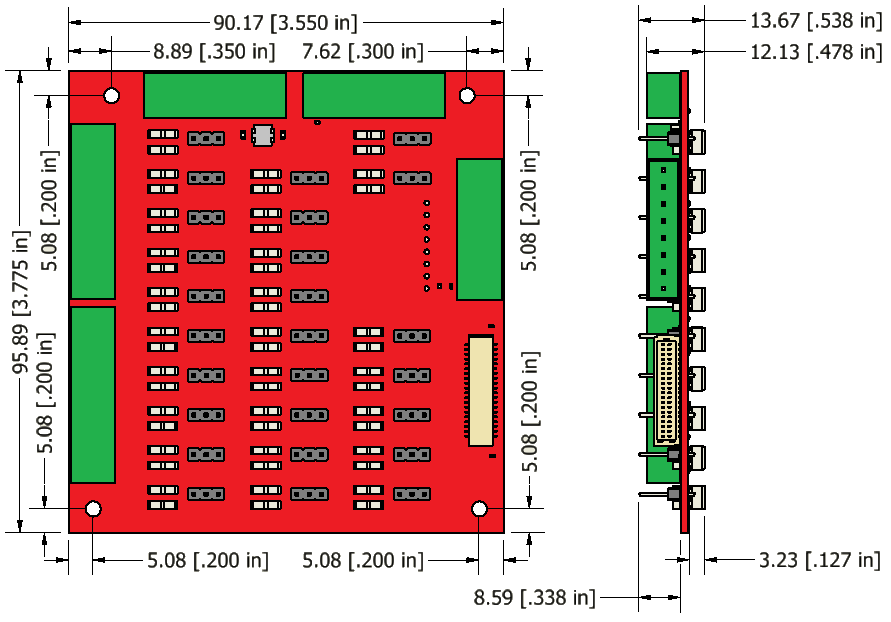

The JBD-4EX-I26 dimensions are shown in the figure below.

JBD-4EX-I26 Dimensions
