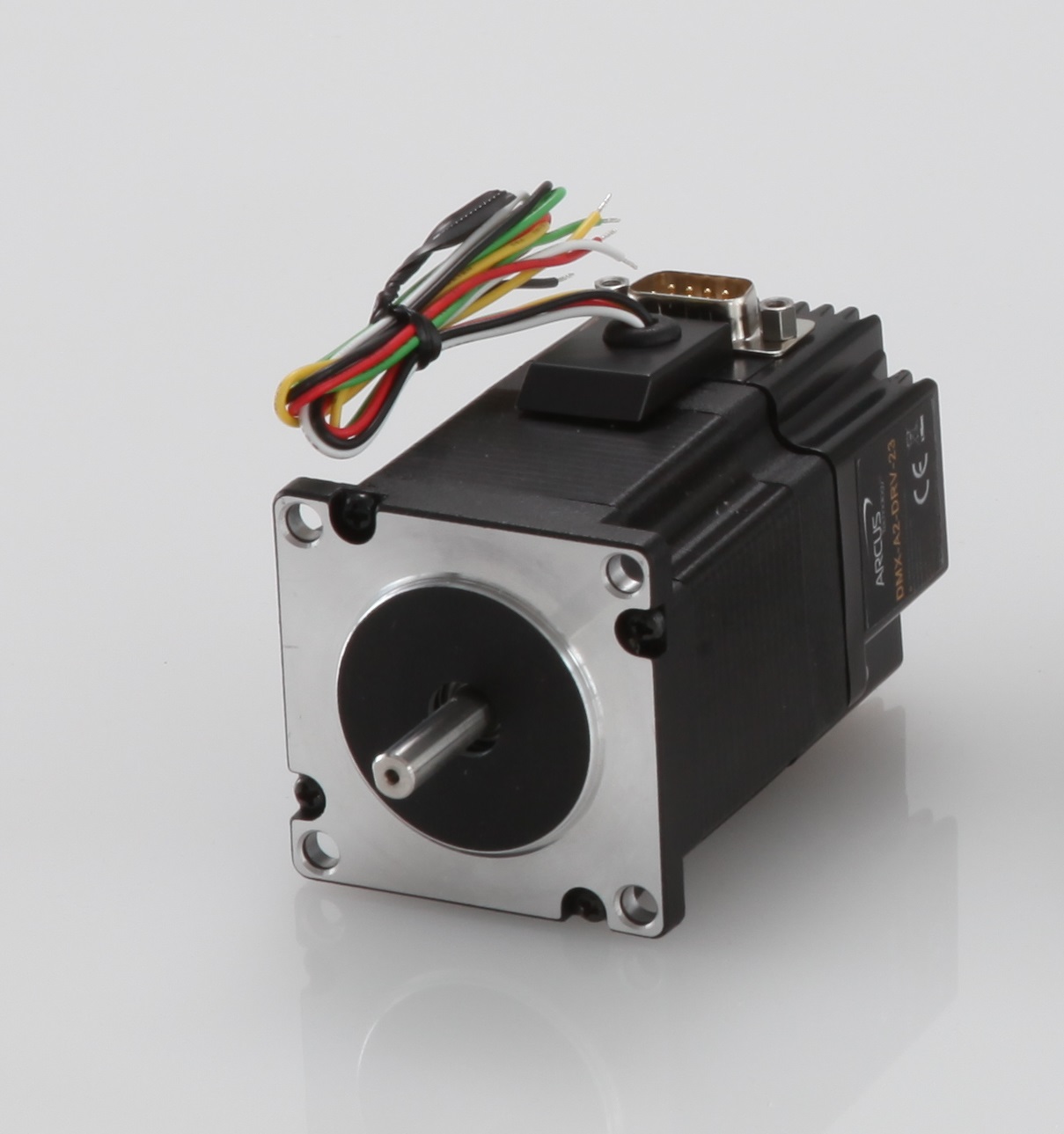

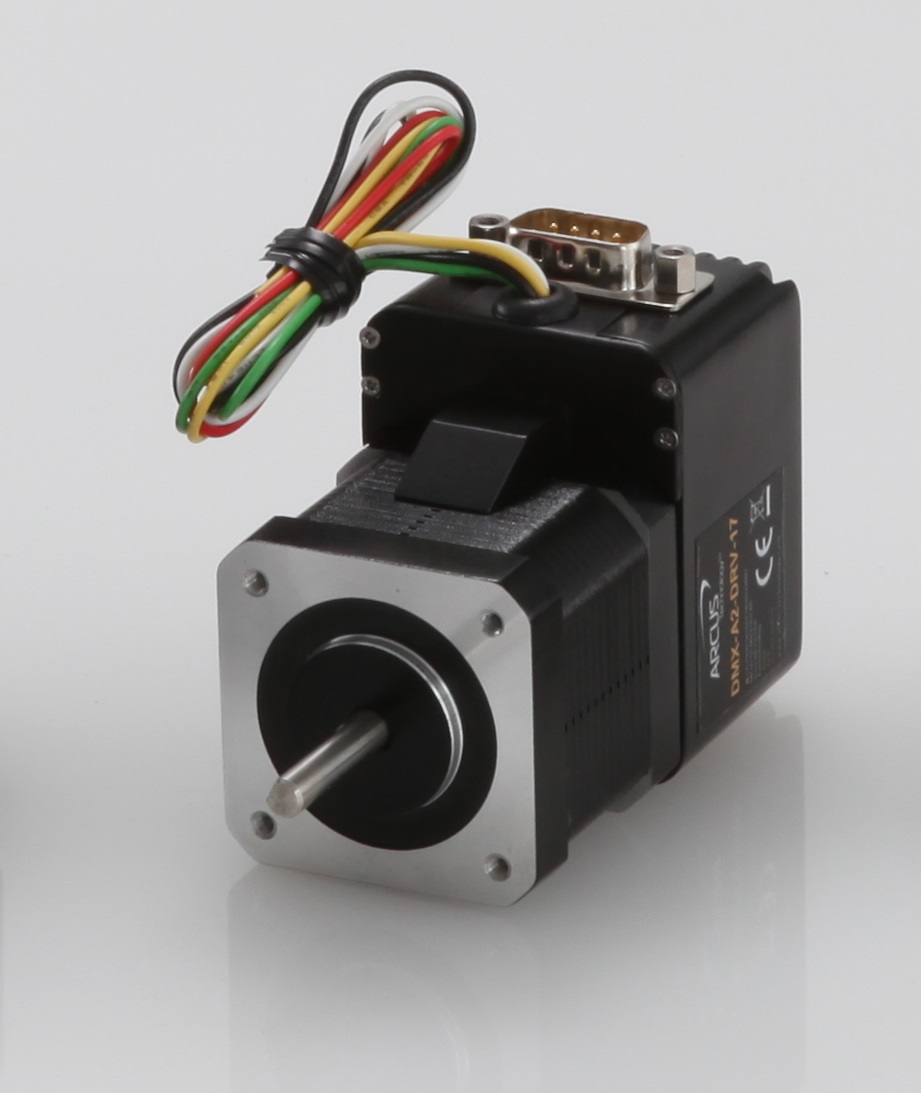

High Resolution Integrated Stepper Motor + Microstep Driver + (Encoder)

The DMX-A2-DRV is an integrated step motor and driver product designed to work with the TB9 Version top board. It is available with or without an encoder.   This allows for simple fast setup and prototyping.

Features:

12 to 48 VDC voltage input

100mA to 3.0A current setting

2-500 micro-step

1M maximum pulse rate input support

Opto-isolated Pulse/Dir (CW/CCW) and Enable inputs

Opto-isolated over-temperature alarm output

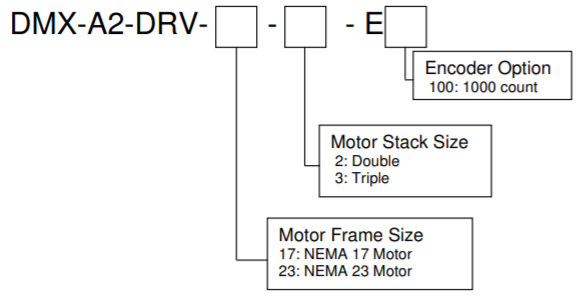

Available in NEMA 23 in double and triple stack lengths

Available with 1000 count encoder (-E100).

Software configurable

Programming cable DMX-CFG-USB-A2
